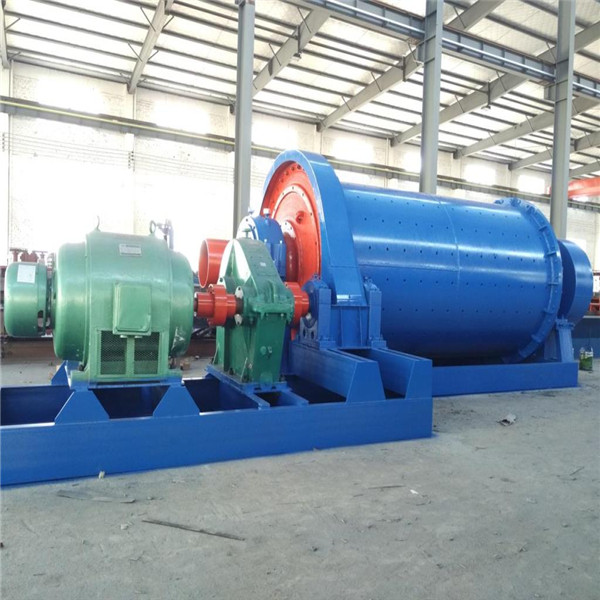

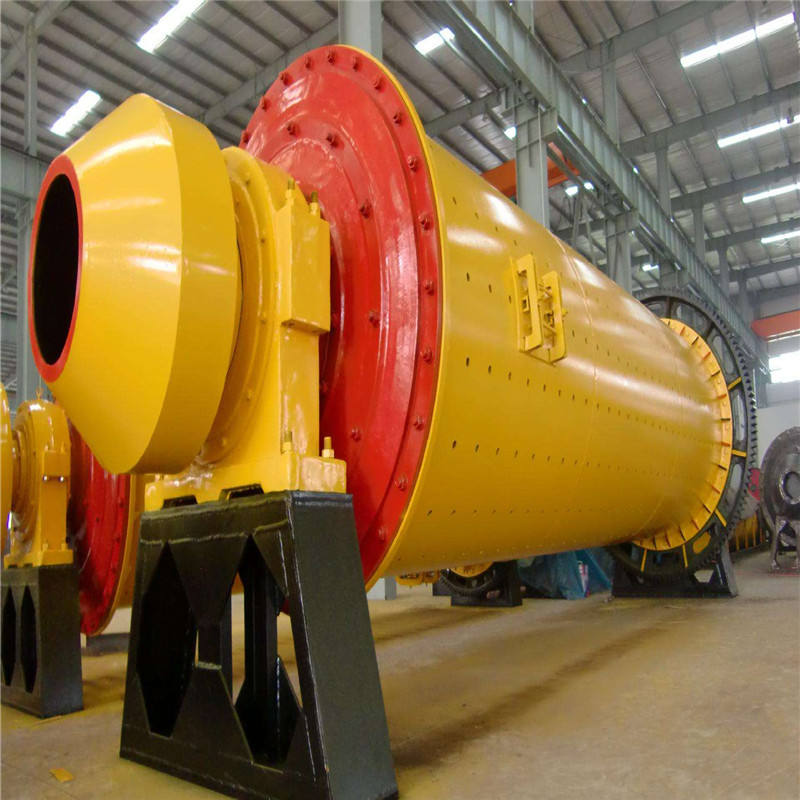

Product use:
Raw material mill is used widely for grinding (both drying and grinding) cement raw material and other materials in building material, metallurgical, electric and chemical industries.
Details


Raw material mill is used widely for grinding (both drying and grinding)  cement raw material and other materials in building material, metallurgical,  electric and chemical industries.


Sorts and Features


a. Common Raw Mill

It is used for small & medium-sized raw materials  separating system outside the mill.


b. Air-swept Mill

The feature of Air-swept mill is short and thick in shell,  wide in diameter of inlet &outlet trunion, large in grate gap area of  diaphragms between drying chamber & grinding chamber, no grate plate in mill  outlet. therefore, air speed inside of mill could reach 5m/s due to small  resistance and drying capacity is strong since large amout of hot air could get  in.


c. Outlet Discharging & Lifting Cycle Mill

Comparing with Air-swept mill, material, passing through the  drying chamber, are discharged at the outlet of grinding chamber by mechanical  way, and then fed into separator by elevator which would return the coarse  material to mill again for cycle grinding.


d. Middle Discharging & Lifting Cycle Mill

From the view of drying, it is the combination of Air-swept  Mill & Outlet Discharging & Lifting Cycle Mill; from the view of  grinding, I workssimilar to secondary stage cycle grinding system. At the front  end, it has drying chamber with high drying efficiency. Materials are fed from  mill inlet, returned material from separator are fed through mill inlet &  mill outlet into rough grinding chamber & fine grinding chamber  respectively.


Main Technical  Parameters


Spec./m

Dia.×Lth

Speed

(    (r/min)

Feeding  Size(mm)

Capacity(t/h)

Grinding Media  loading(t)

Main  Motor

(KW)

Main  Reducer

Weightt

φ2.2×7.0

21.7

2025

35

380

ZD70

62.5

φ2.2×7.5

21.7

2226

35

380

ZD70

64

φ2.2×8.0

21.5

2327

36

475

ZD70

66

φ2.2×9.0

21.5

2428

40

475

ZD70

69

φ2.4×7.0

21.5

2428

36.5

475

ZD70

81

φ2.4×8.0

21.5

2630

42

570

ZD80

86

φ2.4×9.0

21.5

2832

47

570

ZD80

92

φ2.4×10

20.3

3035

52

630

ZD80

108

φ2.6×8.0

19.7

3035

51

630

MBY630

112

JDX630

φ2.6×9.0

19.7

4045

58

710

MBY630

120

JDX630

φ2.6×10

19.7

4550

64

800

MBY710

130

JDX710

φ3.0×9.0

18.2

5055

78

1000

MBY800

158

JDX800

φ3.0×11

18.2

5560

95

1250

MBY800

178

JDX800

φ3.2×10

17.8

6065

100

1400

MBY900

200

JDX900

φ3.2×11

17.8

7080

110

1400

MBY900

215

JDX900

φ3.4×7.5

16.9

5055

80

1000

MBY800

178

φ3.4×7.5+1.8

16.9

5560

70

1250

MBY800

190

φ3.5×10

16.8

7075

80

1250

JS110-A

200

MFY125

φ3.8×7.5

16.5

8590

95

1400

MFY140

185

φ3.8×8.5

16.5

9095

108

1400

MFY140

195

φ4.6×8.5+3.5

15

140150

150

2800

MFY280

325

JS140-A

φ4.6×9.5+3.5

15.1

180190

180

3550

JS150-B

345

φ4.6×10+3.5

15.1

200210

190

3550

JS150-B

370
